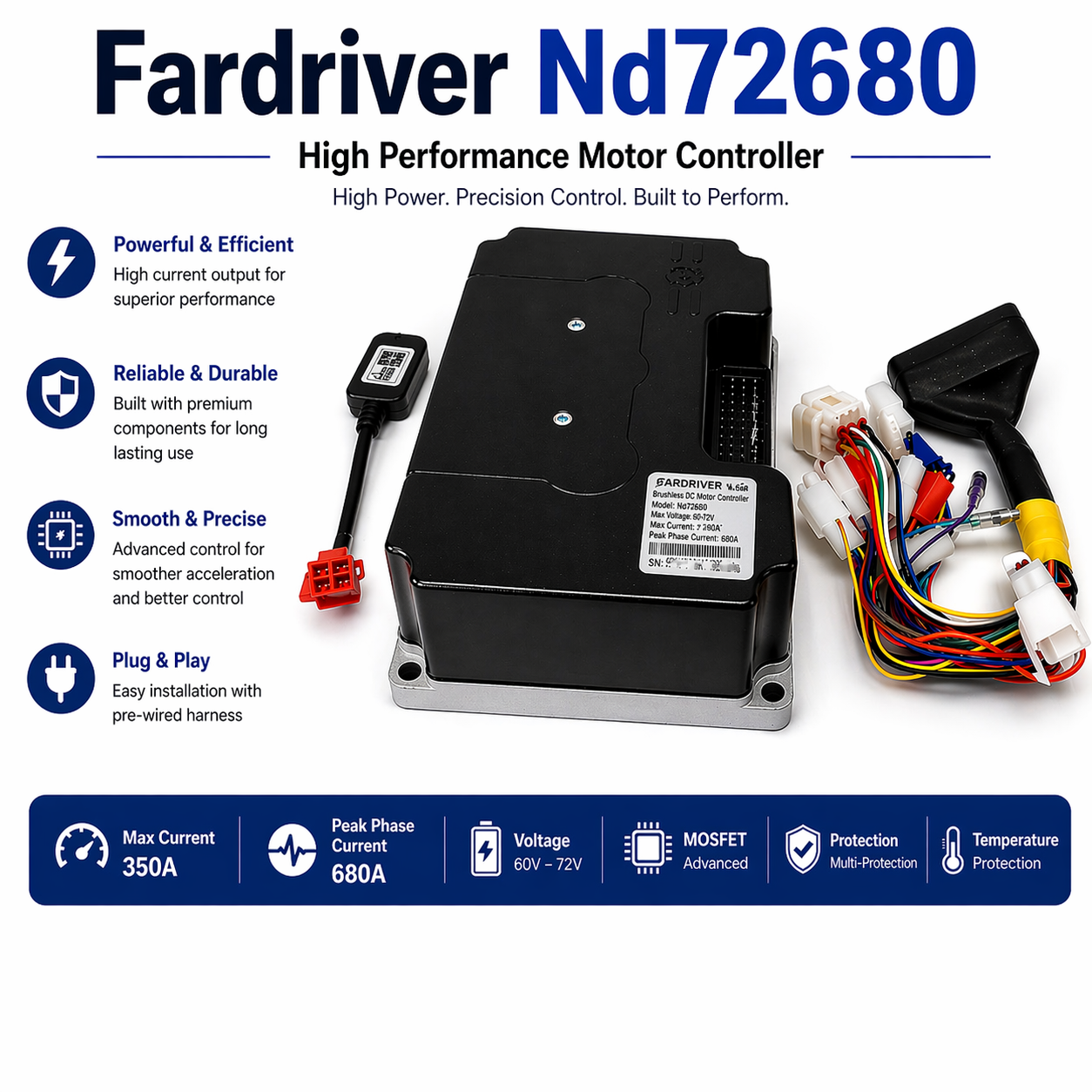

Fardriver ND72680 – 72V 680A Programmable Sine Wave Controller

Elevate your electric vehicle's performance with the Fardriver ND72680, a high-performance 72V sine wave BLDC controller designed for electric scooters, motorcycles, and e-bikes. Engineered for motors ranging from 4kW to 6kW, this controller delivers smooth acceleration, enhanced efficiency, and customizable control.

Key Features:

• Programmable Control: Utilize the Bluetooth module to fine-tune parameters such as speed limits, torque curves, regenerative braking, and throttle response via the FarDriver App, compatible with both Android and iOS devices.

• Advanced FOC Technology: Employing Field-Oriented Control (FOC), the ND72680 ensures precise motor management, resulting in quieter operation, improved torque delivery, and increased energy efficiency.

• Robust Construction: Built with high-quality imported MOSFETs and an aluminium substrate for optimal heat dissipation, ensuring durability and consistent performance under demanding conditions.

• Self-Learning Capability: The controller's self-learning function simplifies setup by automatically detecting motor parameters, facilitating seamless integration with various motor brands.

• Comprehensive Protection: Features include over-voltage, over-current, over-temperature, and short-circuit protection, safeguarding both the controller and motor.

Specifications:

• Rated Voltage: 72V (supports 48V–72V systems; max 88V)

• Peak Phase Current: 680A

• Rated DC Current: 350A

• Motor Compatibility: 4kW – 6kW

• Waterproof Rating: IP67

• Dimensions: Approximately 179 × 120 × 65 mm

• Weight: Approximately 2.65 kg

Package Includes:

• 1 × ND72680 Controller

• 1 × Built-in Bluetooth Module

• 1 × Complete Wiring Harness with Connectors
