Fardriver ND72450 – 72V 450A Programmable Sine Wave Controller with Bluetooth

Elevate your electric vehicle's performance with the Fardriver ND72450, a high-performance 72V sine wave BLDC controller designed for electric scooters, motorcycles, and e-bikes. Engineered for motors ranging from 2kW to 5kW, this controller delivers smooth acceleration, enhanced efficiency, and customizable control.

Key Features:

• Programmable Control: Utilize the  Bluetooth module to fine-tune parameters such as speed limits, torque curves, regenerative braking, and throttle response via a user-friendly interface compatible with both Android and iOS devices.

• Advanced FOC Technology: Employing Field-Oriented Control (FOC), the ND72450 ensures precise motor management, resulting in quieter operation, improved torque delivery, and increased energy efficiency.

• Robust Construction: Built with high-quality imported MOSFETs and an aluminum substrate for optimal heat dissipation, ensuring durability and consistent performance under demanding conditions.

• Self-Learning Capability: The controller's self-learning function simplifies setup by automatically detecting motor parameters, facilitating seamless integration with various motor brands.

• Comprehensive Protection: Features include over-voltage, over-current, over-temperature, and short-circuit protection, safeguarding both the controller and motor.

Specifications:

• Rated Voltage: 72V (supports 48V–72V systems)

• Peak Phase Current: 450A

• Rated DC Current: 200A

• Motor Compatibility: 2kW – 5kW

• Waterproof Rating: IP67

• Dimensions: Approximately 180 × 120 × 55 mm

• Weight: Approximately 2.0 kg

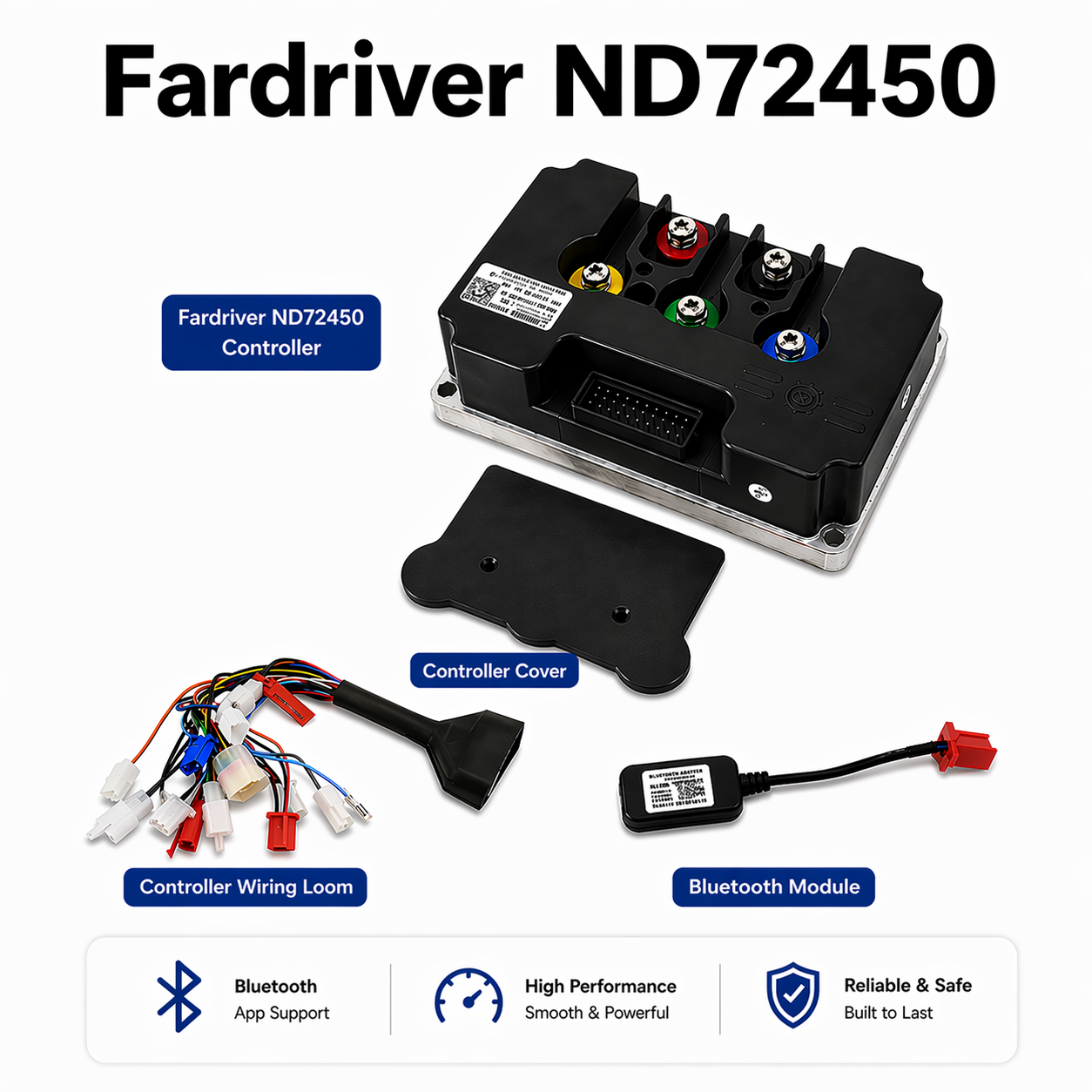

Package Includes:

• 1 × ND72450 Controller

• 1 ×  Bluetooth module

• 1 × Complete Wiring Harness with Connectors
